Transition Profile

T Profiles

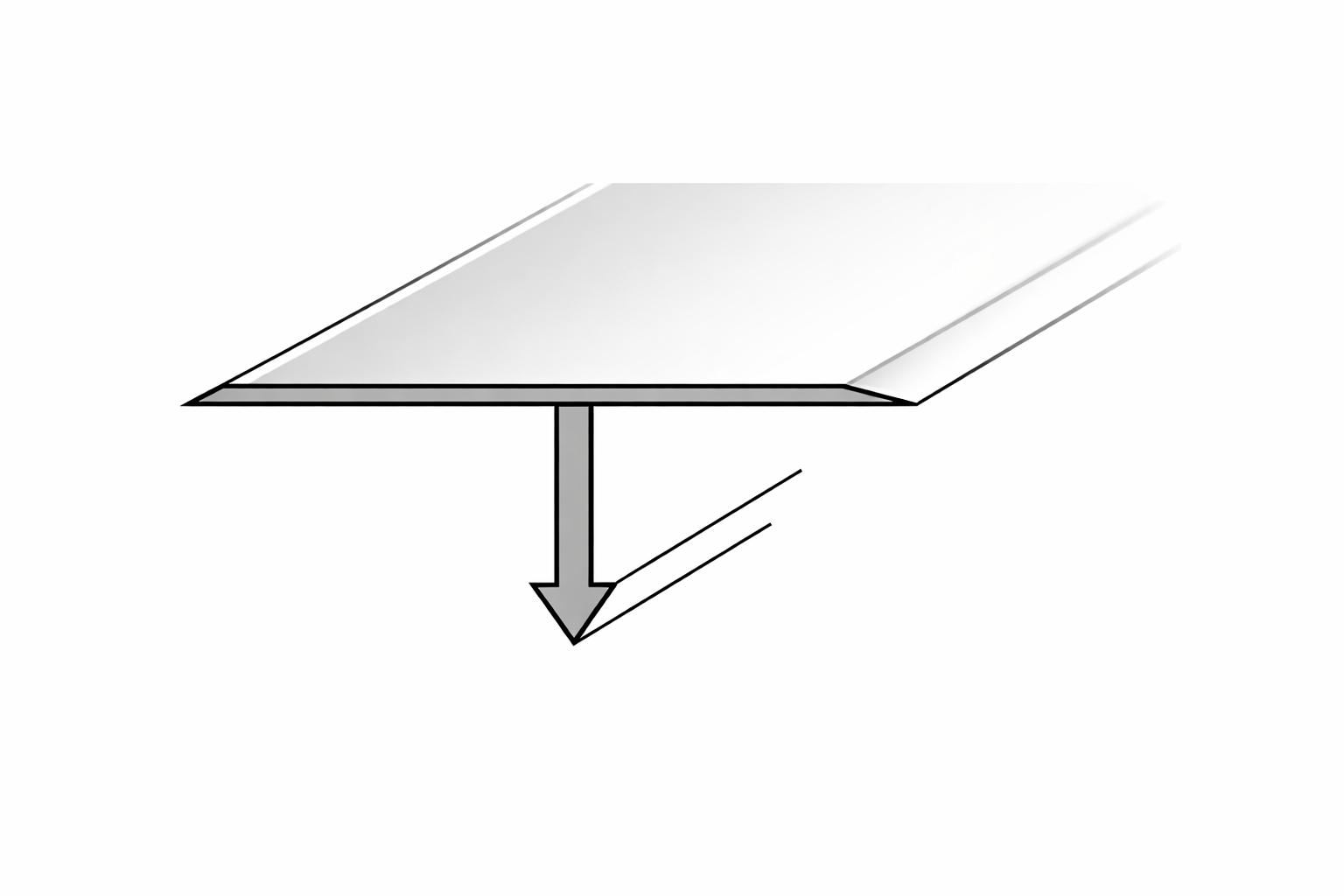

Aluminium T-shape trim for same-level transitions between hard-surface finishes

T profiles solve one of the most visible detailing challenges in modern flooring: the junction between two hard surfaces at the same level. Whether separating porcelain tile from engineered wood, ceramic from natural stone, or two zones of the same material with a movement allowance, a well-specified T profile delivers a clean, straight division line that protects edges and handles minor thickness variations.

Aluprofilium's aluminium T profiles are extruded from high-grade alloy, finished in anodized, brushed, and powder-coated options, and supplied in export-grade bulk packaging. The top surface sits flush with the finished floor, while the bottom flange anchors the profile between the two coverings — engineered for silent, long-life performance under commercial foot traffic.

Request a Quote Request Technical Specification

Technical overview

Current product information

Material: Aluminium extrusion, 6063 alloy
Top widths: 14, 20, 25, 30, 40 mm (other widths on request)
Standard length: 2.5 m / 2.7 m (cut-to-size available)
Finishes: Anodized (silver/gold/bronze/black), brushed, powder-coated
Function: Same-level transition & division between hard floors
Packaging: Bulk cartons, project-quantity export-ready

Technical guidance

Define the transition before selecting the section.

Review adjoining surfaces, height relationship, joint condition and finish direction before preparing the enquiry.

Selected for T Profiles

01 Floor details Floor Profile Specification Reference Review floor joints, thresholds and transition conditions before selection. 02 Surface Aluminium Profile Finishes Guide Compare mill, anodised, brushed, bright and powder-coated finish directions. 03 Specification Aluminium Profile Specification Guide Prepare drawing, dimensions, finish, quantity, packaging and destination inputs.

Surface finish

Finish direction

Surface options are reviewed against the selected profile, intended use and quotation requirements.

Review finish options

Export preparation

Packaging context

Protective wrapping, bundling, cartons or crates are selected according to the profile and shipment requirement.

Review packaging & export

Technical file

Catalog & specification

Use the current catalog as a reference, then confirm the selected section and technical requirement with the export desk.

Open product catalog Request technical information
