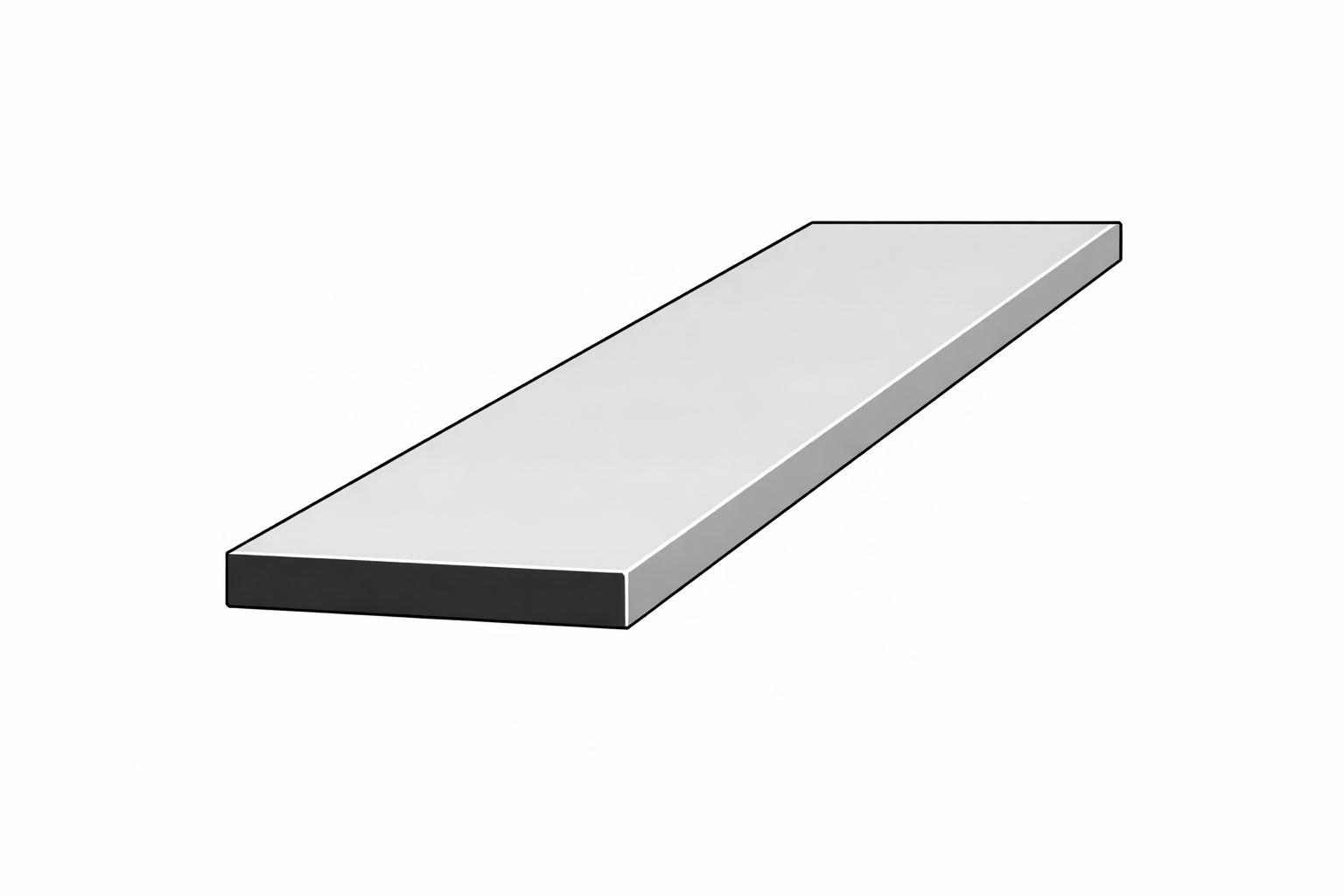

Flat Bar Profile
Flat Profiles
Solid aluminium flat bar and strip for trim, backing, reinforcement and architectural detailing
Flat profiles — solid aluminium bar and strip — are the workhorse sections of the extrusion catalog. Wherever a thin, straight, rigid line of metal is needed, a flat profile is the right answer: wall trim, shelving edges, reinforcement strips, industrial fittings, signage backing, and general fabrication stock.
Aluprofilium's flat range is extruded in 6063 alloy and supplied in a wide spread of widths and thicknesses. Finishes include mill, anodized (clear, bronze, black), brushed, and powder-coated in full RAL colors. Bulk packaging and project-quantity pricing make flat bars a reliable stock item for distributors and industrial clients.
Technical overview
Current product information
- Material
- Aluminium extrusion, 6063 alloy (T5/T6 tempers)
- Widths
- 10, 15, 20, 25, 30, 40, 50, 60, 80, 100 mm
- Thicknesses
- 1.5, 2.0, 3.0, 4.0, 5.0, 6.0, 8.0, 10 mm
- Standard length
- 6 m (cut-to-size available)
- Finishes
- Mill, anodized, brushed, powder-coated (full RAL)
- Packaging
- Bulk bundled, film-wrapped, export-ready
Technical guidance
Prepare a clearer profile requirement.
Use the specification and finish guides to organise the available drawing, dimensions, surface direction and commercial inputs.
Selected for Flat ProfilesSurface finish
Finish direction
Surface options are reviewed against the selected profile, intended use and quotation requirements.
Review finish optionsExport preparation
Packaging context
Protective wrapping, bundling, cartons or crates are selected according to the profile and shipment requirement.
Review packaging & exportTechnical file
Catalog & specification
Use the current catalog as a reference, then confirm the selected section and technical requirement with the export desk.
Open product catalog Request technical information
